Glass Edging Machines
8-Spindle Flat Edging Machine
Complete edging line from rough grinding to polishing with 8 processing stations.
| Model | DR-8 |
|---|---|
| Category | Glass Edging Machines |
| Key feature | Polished bevels |
| Min. glass size | 100 × 100 mm |
| Max. glass size | 3210 × 2500 mm |
| Glass thickness | 3 – 19 mm |
| Max. edging speed | 180 m/h |
| Control system | PLC controlled · Touch screen · Speed control |
| Mechanical squaring | Yes |
| Water tank | 2 pcs |
| Machine features | 8-spindle flat edging |
| Dimensions (W × L × H) | 6300 × 1300 × 2700 mm |
| Weight | 3500 kg |
| Air pressure | 6 – 10 bar |
| Voltage / Frequency | 380 V AC · 50 Hz |
| Total installed power | 12 kW |
Product Description

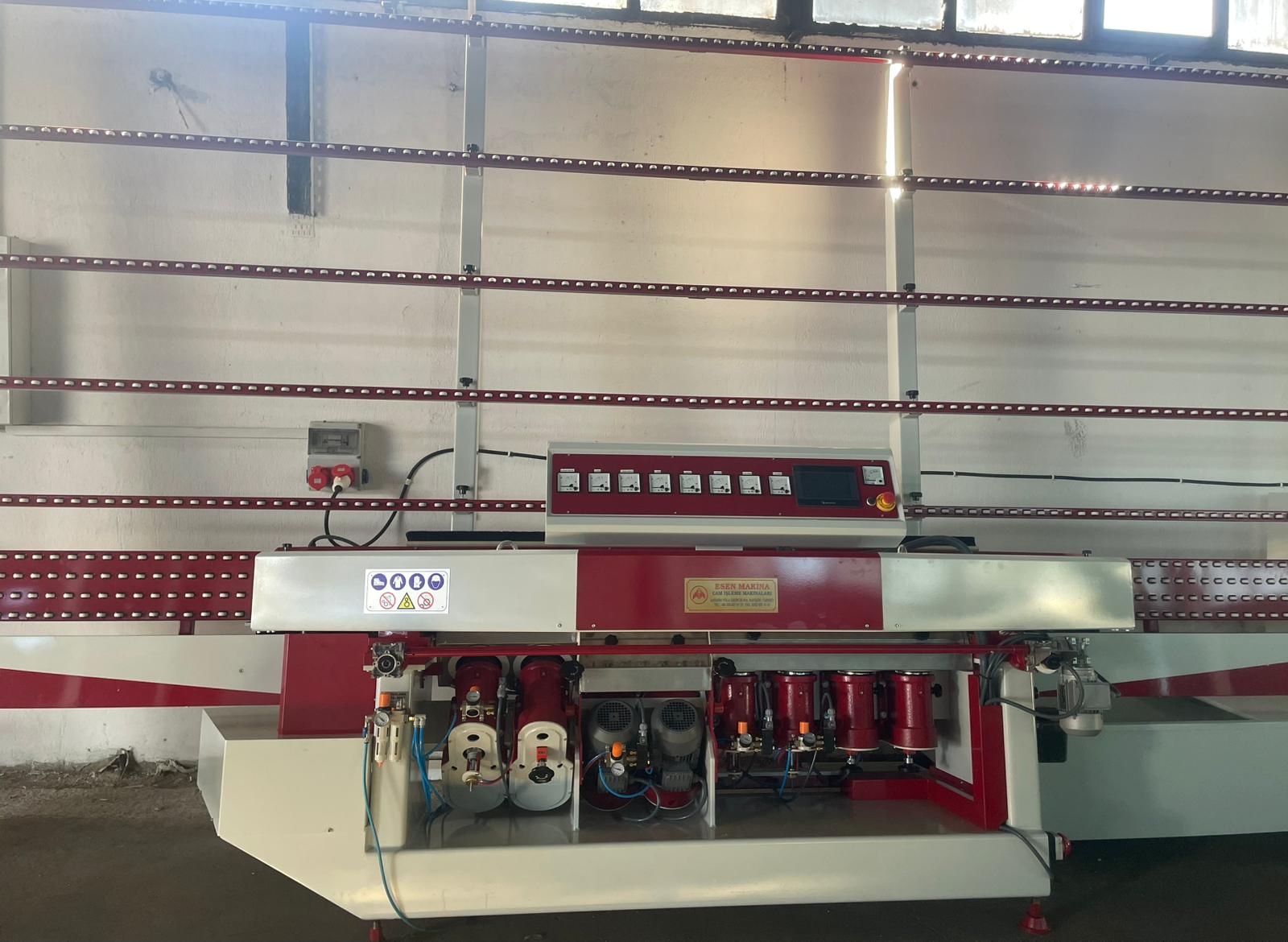

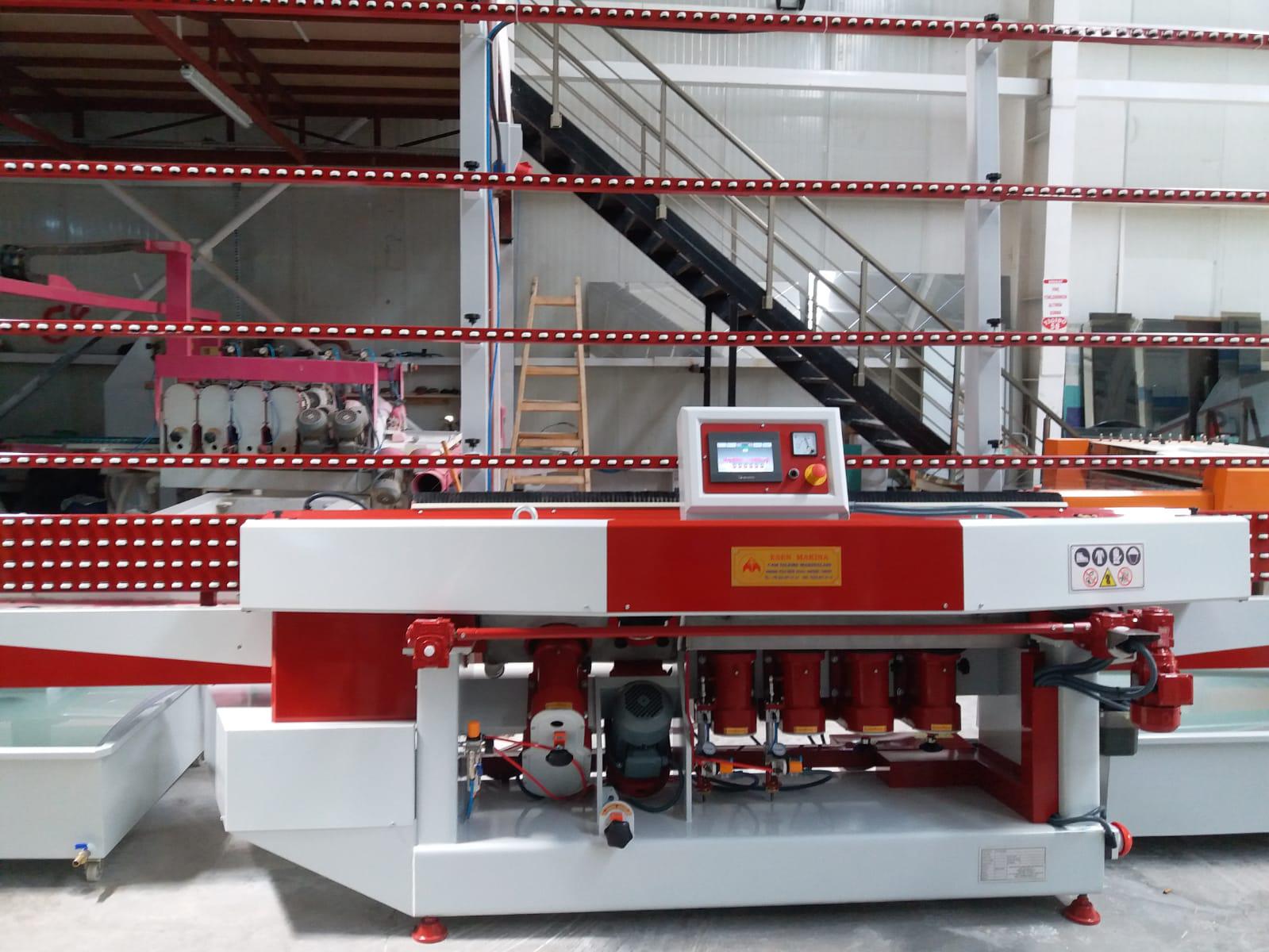

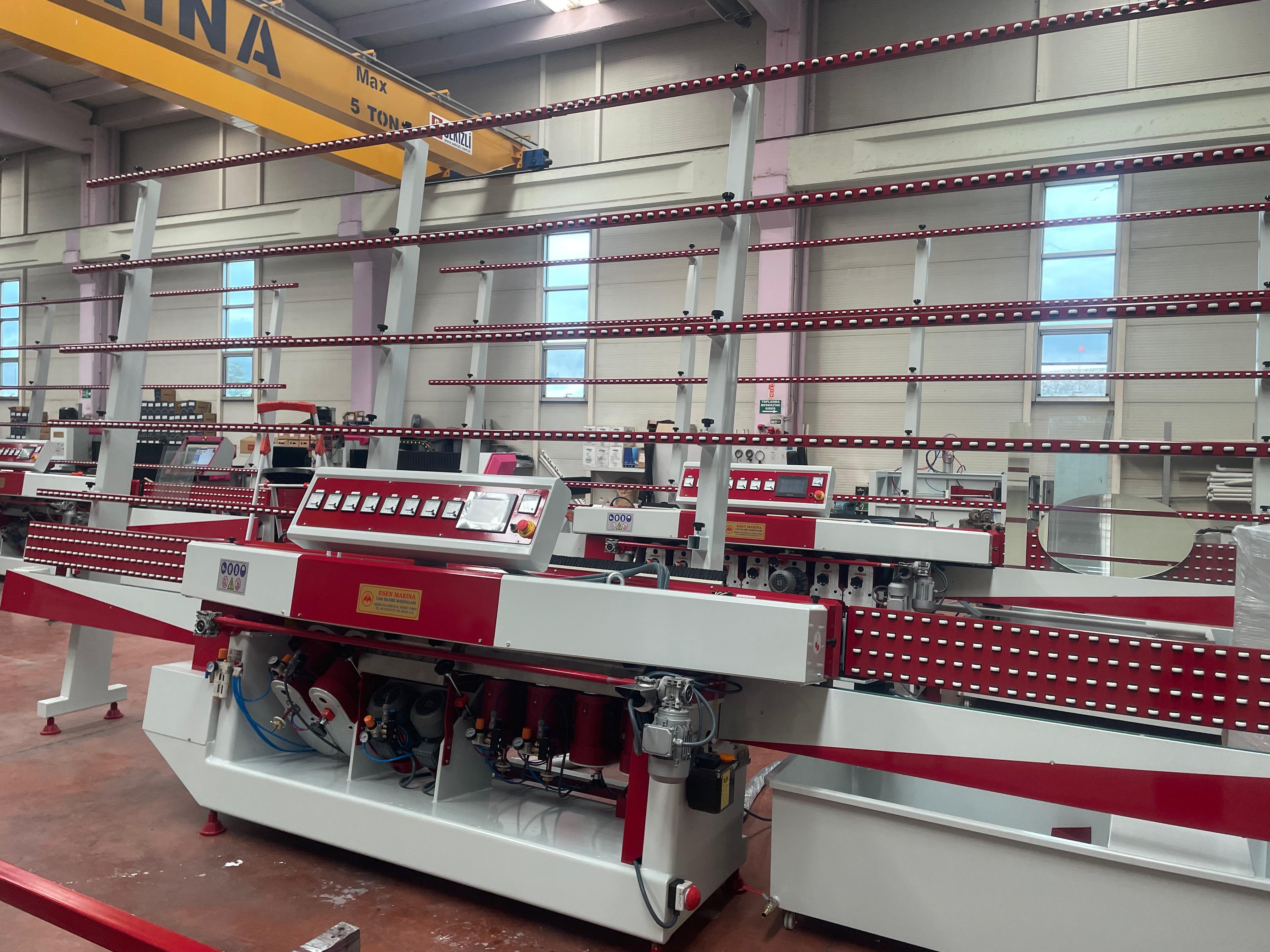

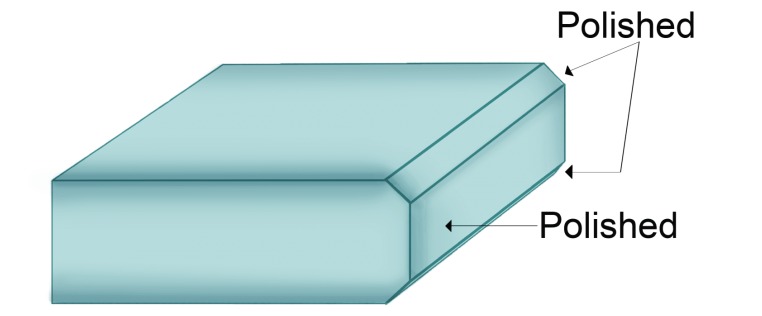

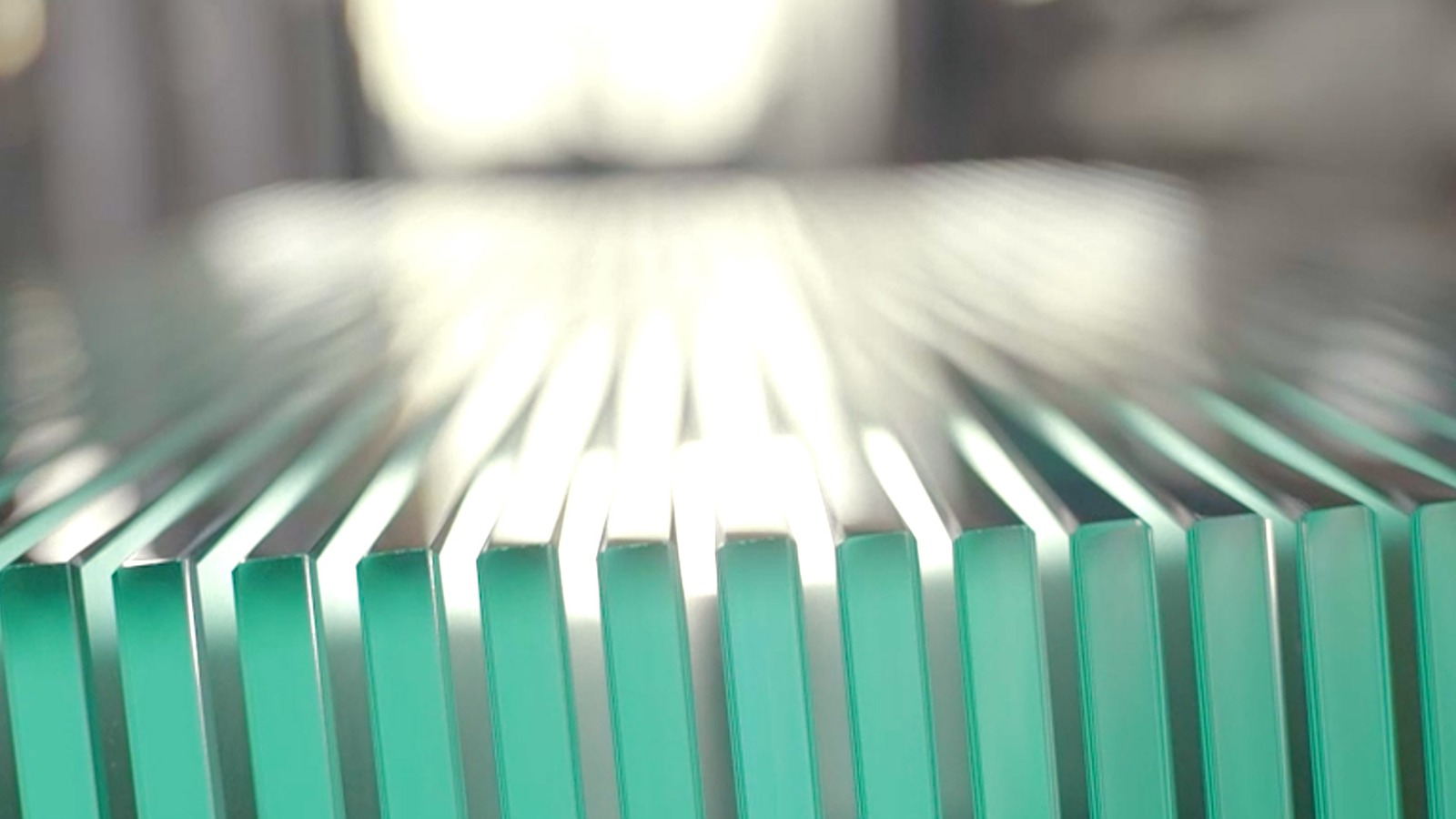

The DR-8 is a vertical 8-spindle flat edging machine. Its 8-spindle group of diamond and polishing wheels produces a flat, polished edge with a bright arris. It is the most widely chosen machine for edging glass doors, shop windows, table tops and all glass to be tempered.
Digital thickness adjustment and variable speed allow it to work with different glass thicknesses. With low energy consumption and easy maintenance, it is the core machine of small and medium-sized glass workshops.
×
❮
❯
![]()
