Shaped Glass Processing Machines
Shape Beveling & Edging Machine
Performs beveling and edging together on curved and custom-shaped glass.
| Model | FBR-240 |
|---|---|
| Category | Shaped Glass Processing Machines |
| Key feature | Beveling and 45° angled edging |
| Min. glass processing capacity | 200 mm |
| Max. glass processing capacity | 2400 mm |
| Glass thickness | 3 – 19 mm |
| Max. beveling speed | 200 m/h |
| Mechanical squaring | Yes |
| Guarding | Yes |
| Dimensions (W × L × H) | 1200 × 1200 × 1700 mm |
| Weight | 675 kg |
| Voltage / Frequency | 220 V AC · 50 Hz |
| Total installed power | 4 kW |
Product Description

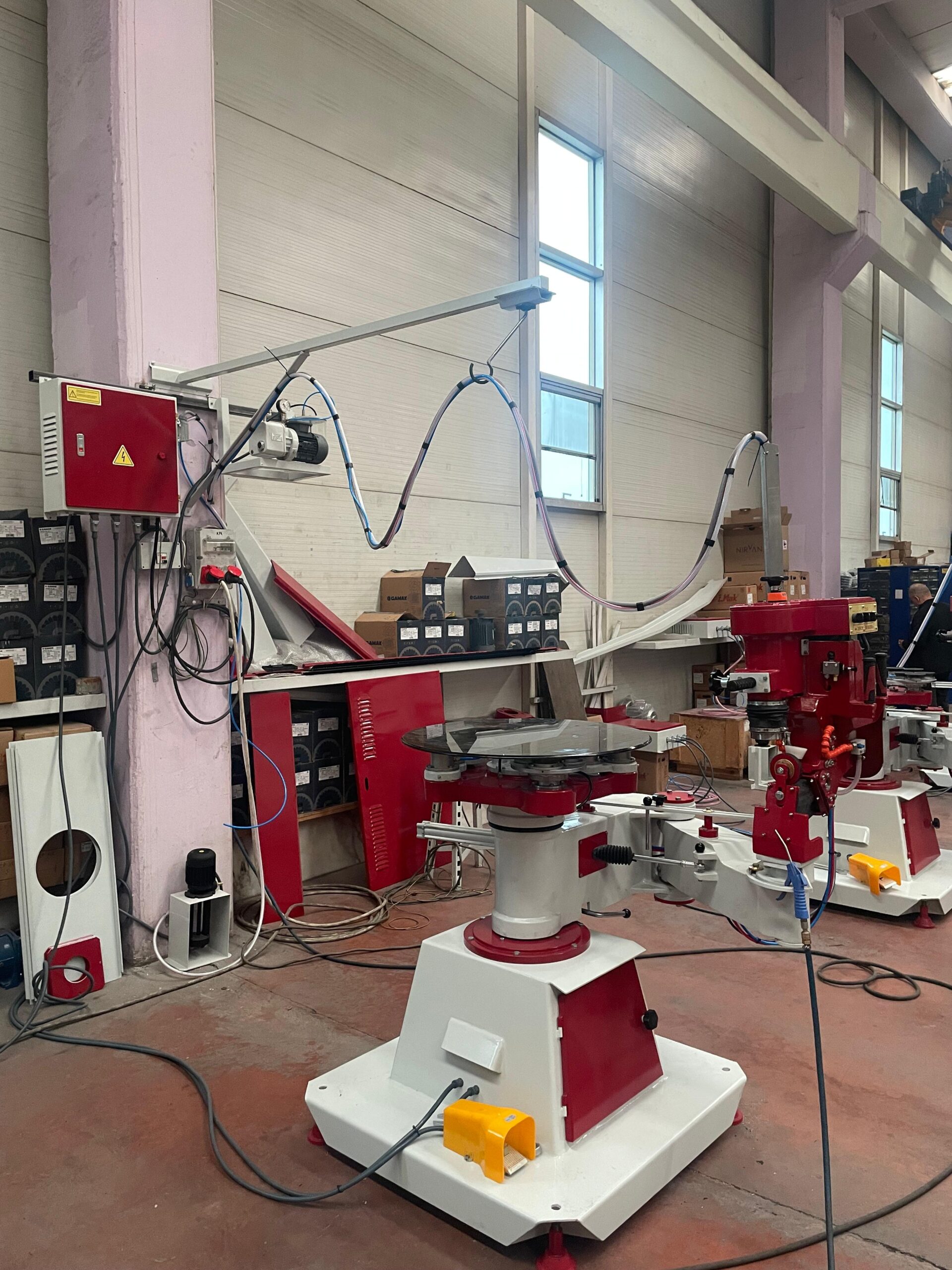

The FBR-240 shape beveling and edging machine is designed for beveling and edging round, oval and free-form glass. The glass is fixed on a rotary table; the processing head follows the shape of the glass, or the table is held still and the operator guides the processing head around the shape to produce an even bevel along the entire edge. It is used in mirror, furniture and decorative glass production.
Adjustable bevel angle and bevel width adapt to different designs.
×
❮
❯
![]()
