Beveling Machine
Angle-adjustable grinding unit for decorative bevel profiles.
| Model | BM-7 |
|---|---|
| Category | Glass Beveling Machines |
| Key feature | 200 m/h beveling speed |
| Min. glass size | 40 × 40 mm |
| Max. glass size | 3210 × 2500 mm |
| Glass thickness | 3 – 10 mm |
| Max. beveling speed | 200 m/h |
| Control system | PLC controlled · Touch screen · Speed control |
| Mechanical squaring | Yes |
| Water tank | 2 pcs |
| Dimensions (W × L × H) | 6300 × 1300 × 2700 mm |
| Weight | 3560 kg |
| Air pressure | 6 – 10 bar |
| Voltage / Frequency | 380 V AC · 50 Hz |
| Total installed power | 14 kW |
Product Description

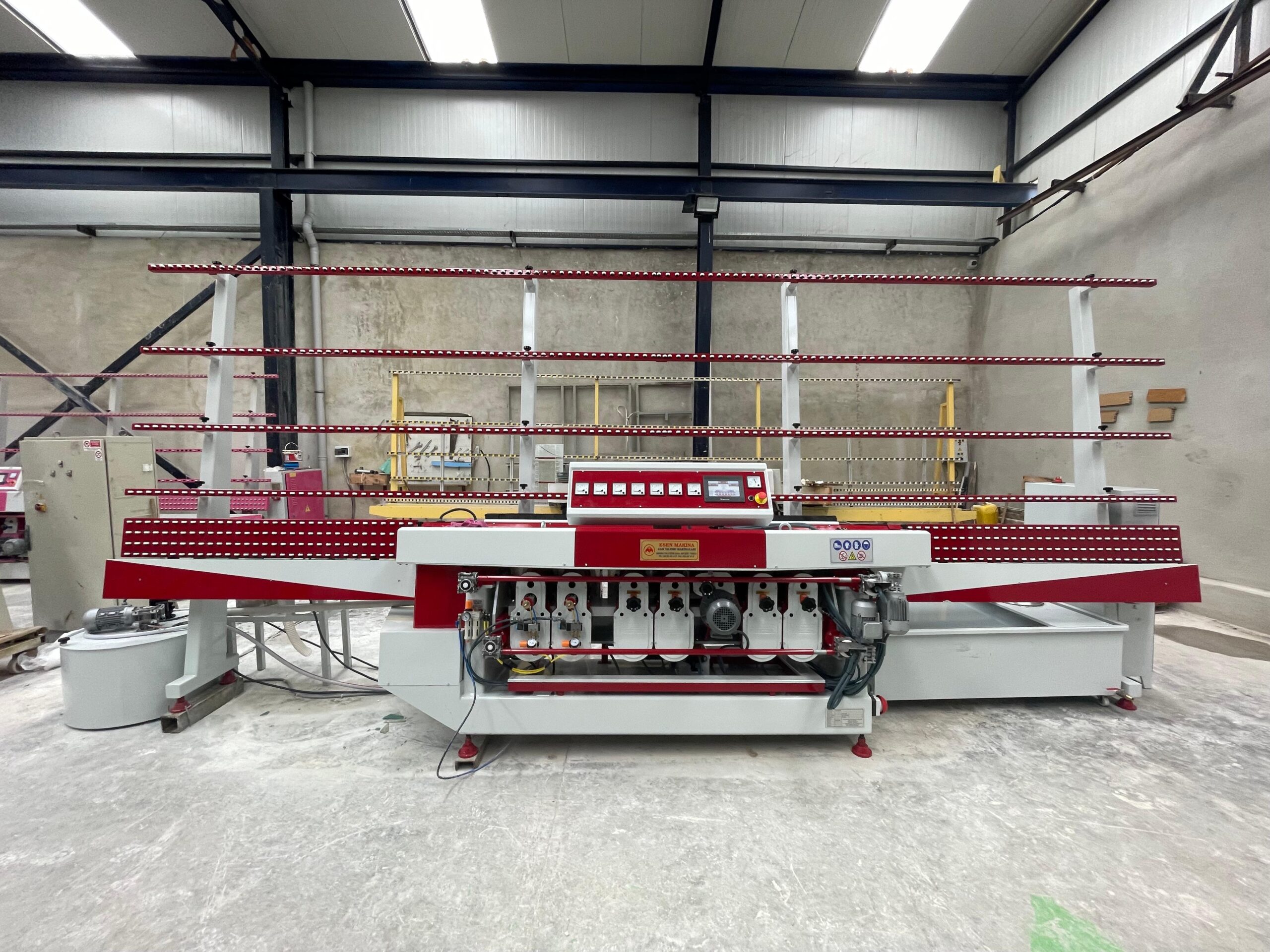

The Esen Makina BM-7 beveling machine grinds and polishes an angled (beveled) edge on flat glass in a single pass. Its 7-spindle processing group performs rough and fine grinding with diamond wheels, followed by polishing wheels for a mirror-bright finish. Handling 3–19 mm glass and sizes from 40 x 40 mm, it is designed for producers of mirrors, furniture glass, table tops and decorative glass.
The machine is manufactured in our factory in Kayseri, Türkiye; its adjustable bevel angle, digital thickness display and rigid frame make it a long-lasting, low-maintenance solution. Spare parts and service support are provided by Esen Makina.
