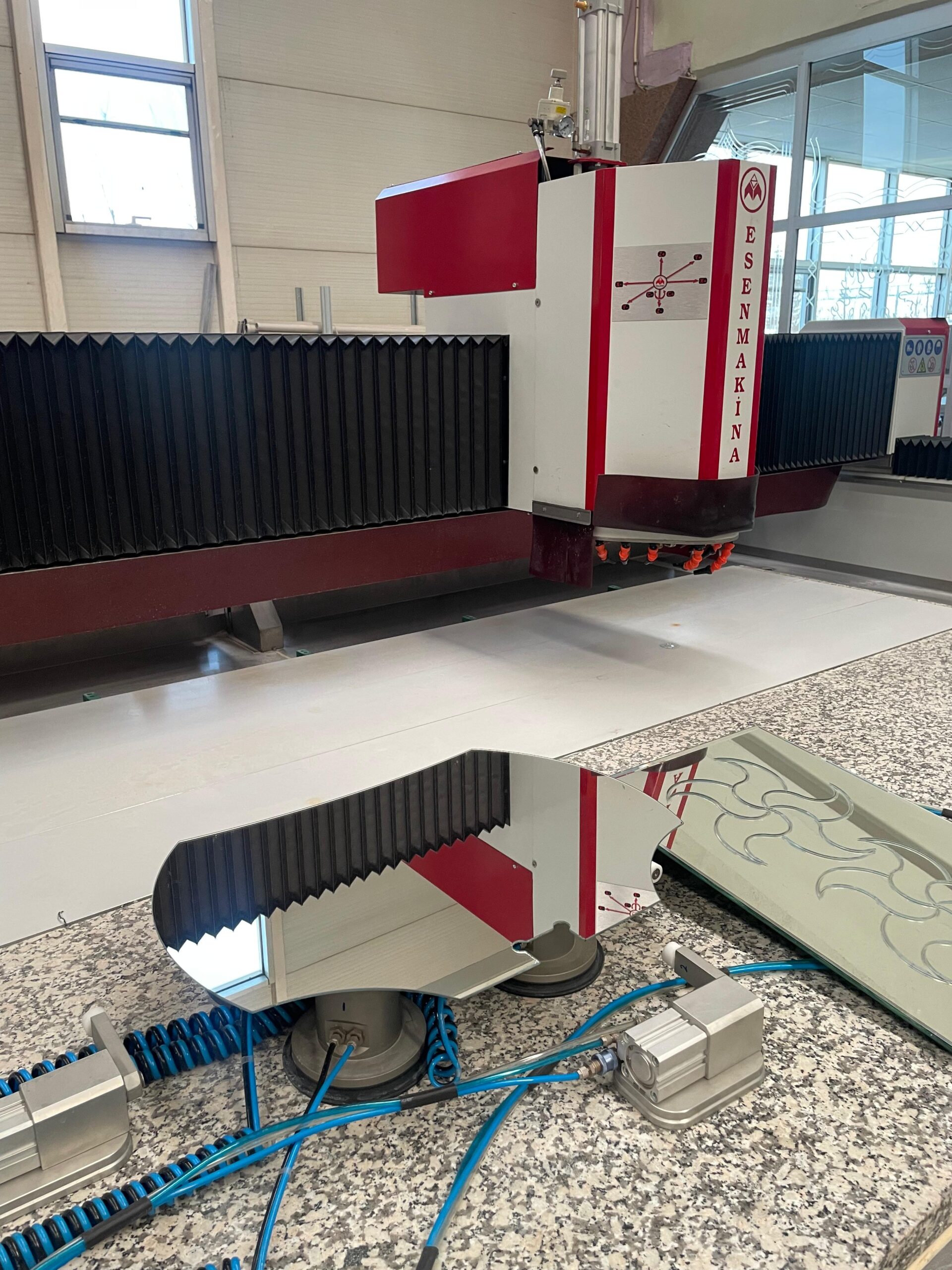

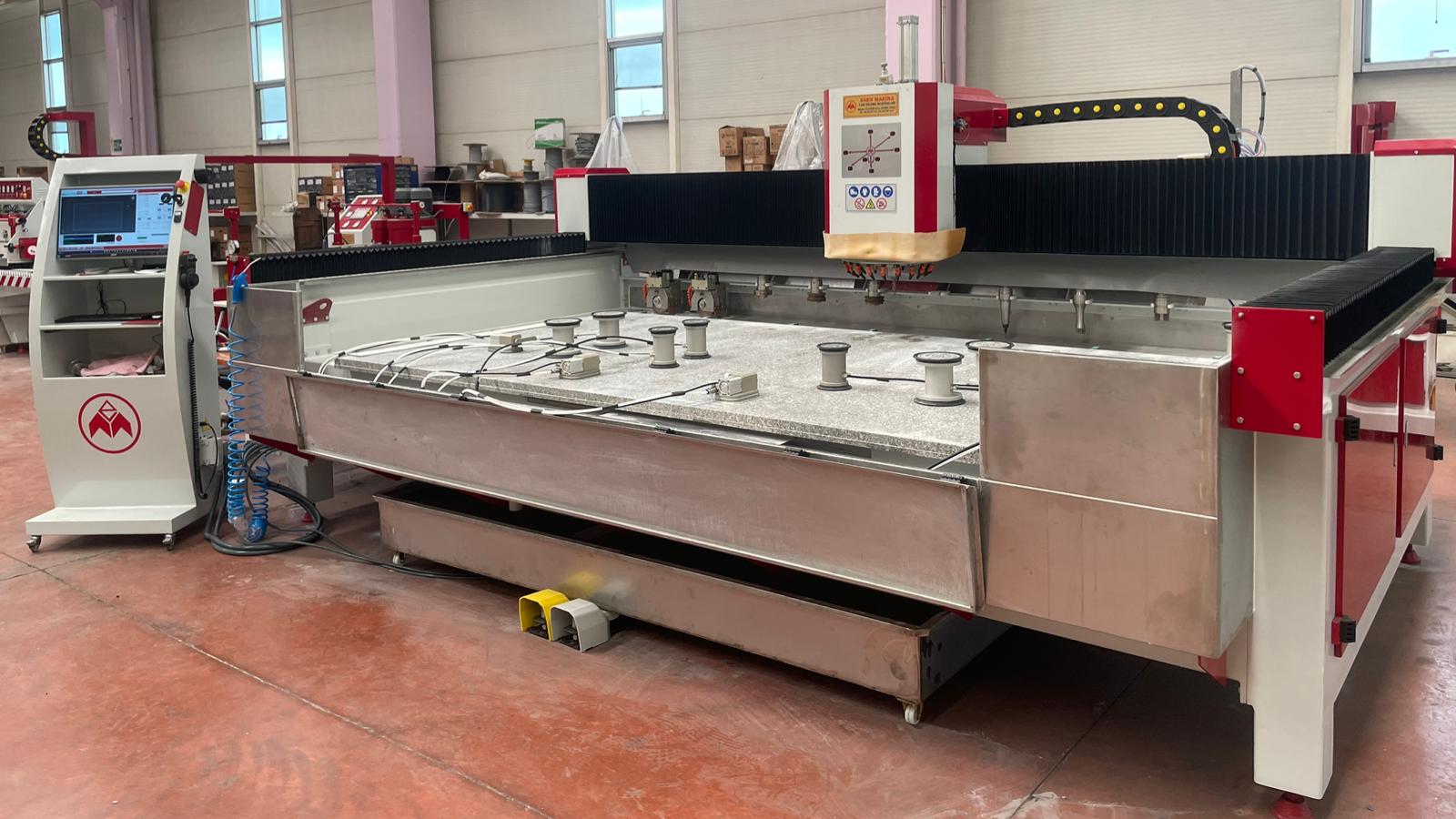

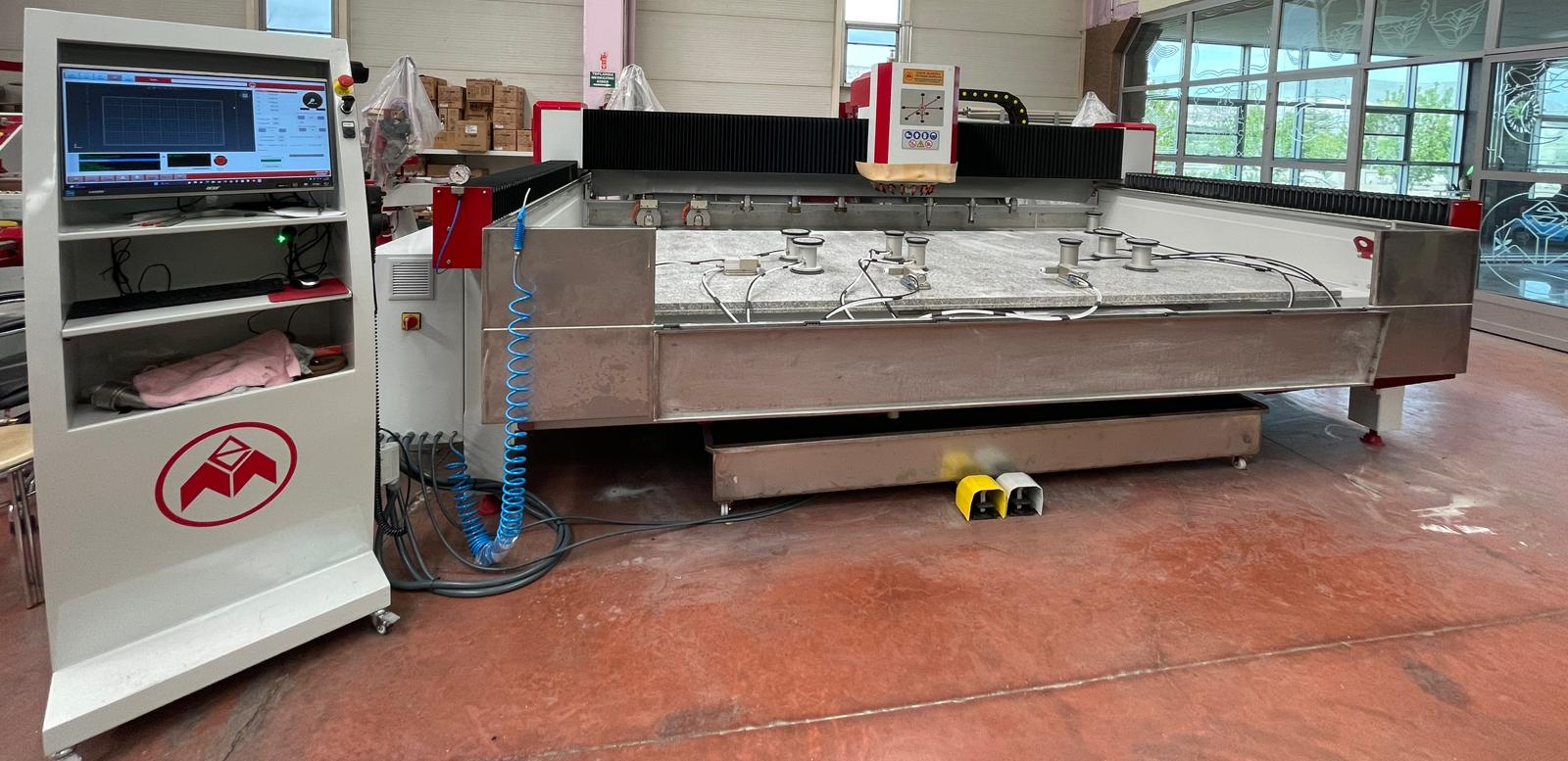

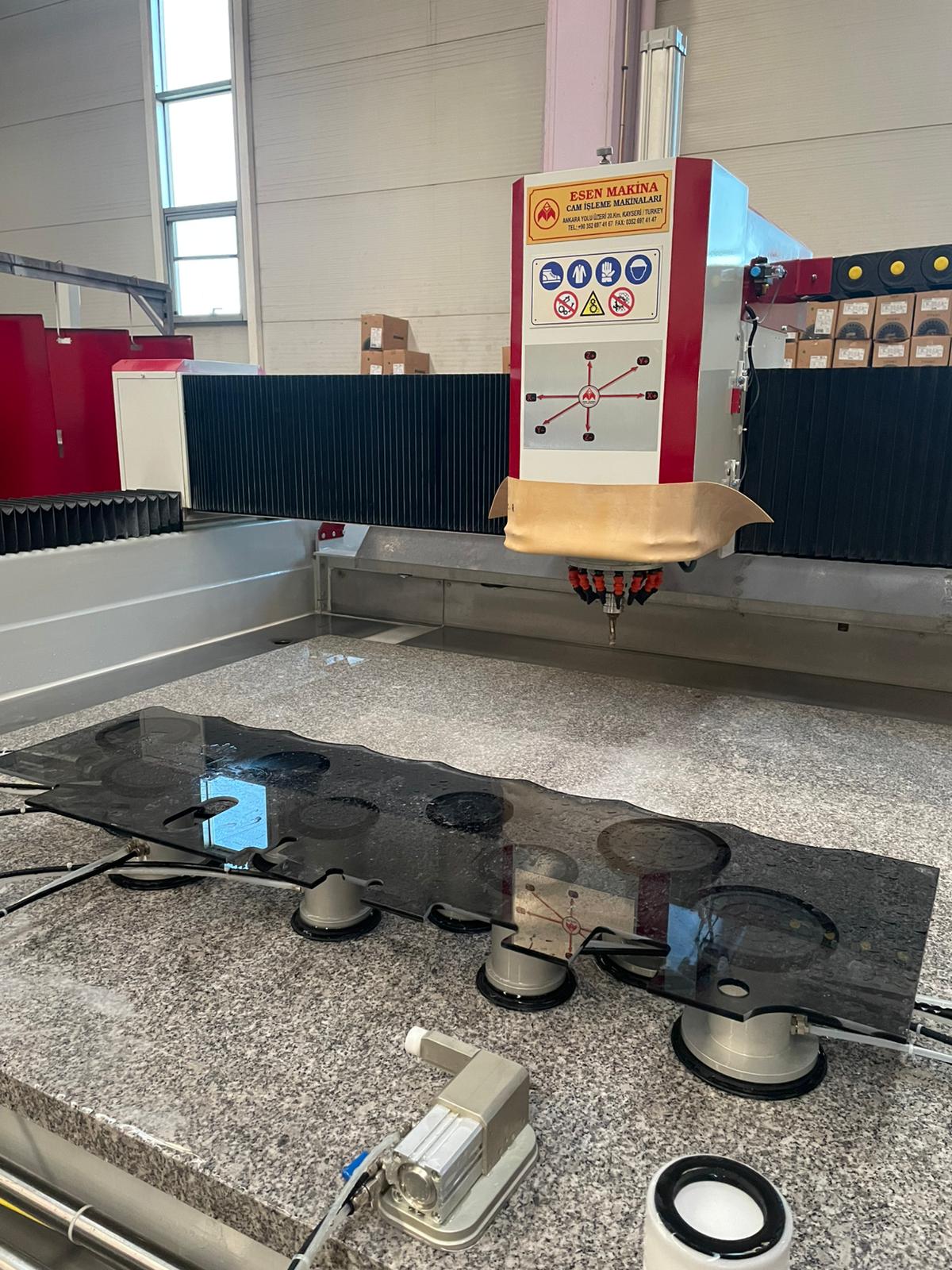

4-Axis CNC Glass Processing Machine (Groove, Edge, Mill)
4-axis center combining grooving, edging and milling in a single machine.
| Model | 4-Axis CNC |
|---|---|
| Category | CNC Machining Centers |
| Key feature | Servo-controlled X, Y, Z, C axes |
| Max. glass size | 1800 × 3300 mm |
| Glass thickness | 3 – 20 mm |
| Axis control | Servo controllers |
| Motion system | X, Y, Z and C axes |
| Adjustable speed control | Automatic and manual |
| Adjustable position control | Automatic and manual |
| Mechanical squaring | Automatic stop |
| Sensor guarding | Yes |
| Water tank | 2 pcs |
| Other | Grooving, engraving, milling, drilling, edging, polishing |
| Dimensions (W × L × H) | 5000 × 4000 × 2000 mm |
| Weight | 3500 kg |
| Air pressure | 6 – 10 bar |
| Voltage / Frequency | 380 V · 50 Hz |
| Total installed power | 25 kW |
Product Description

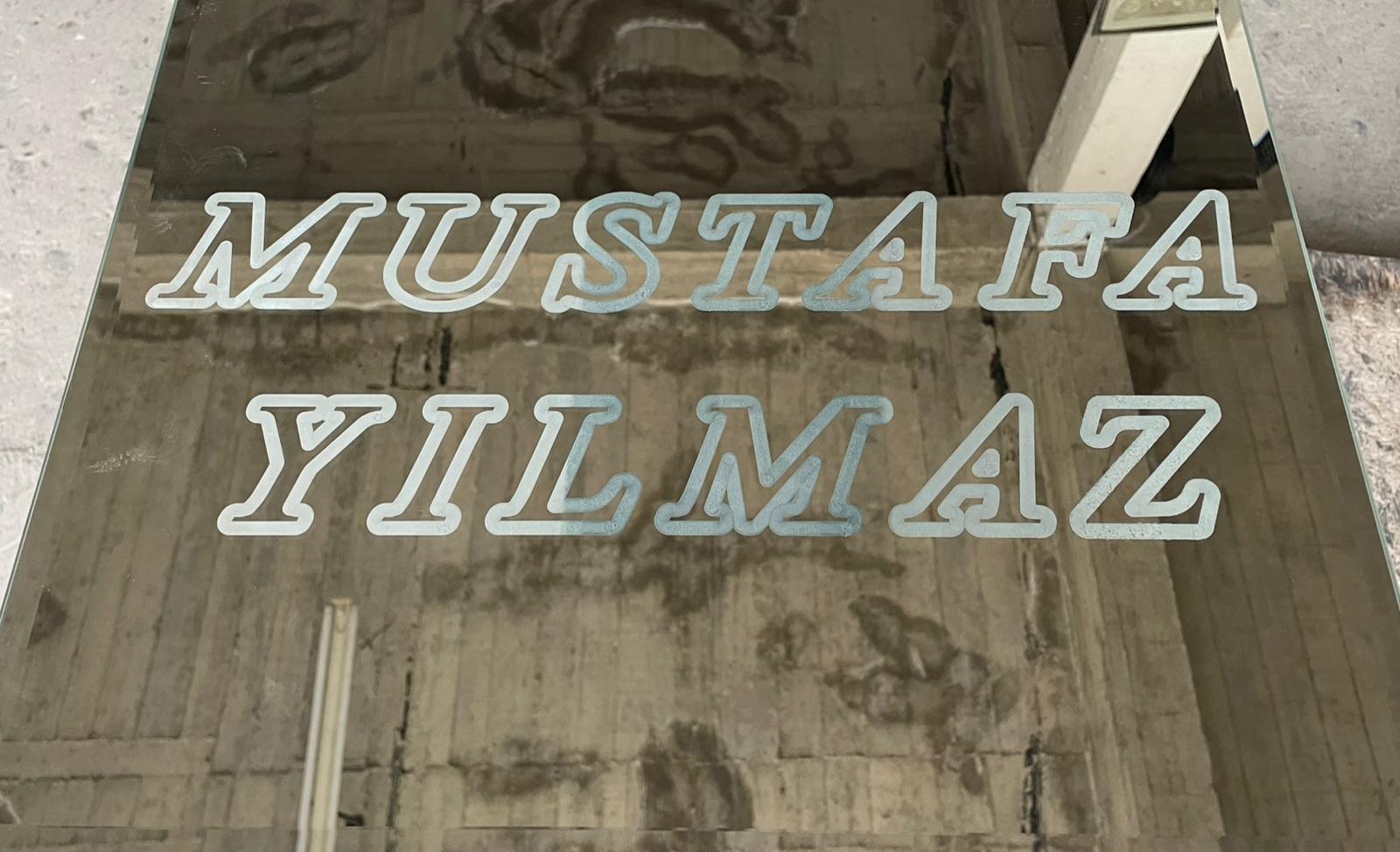

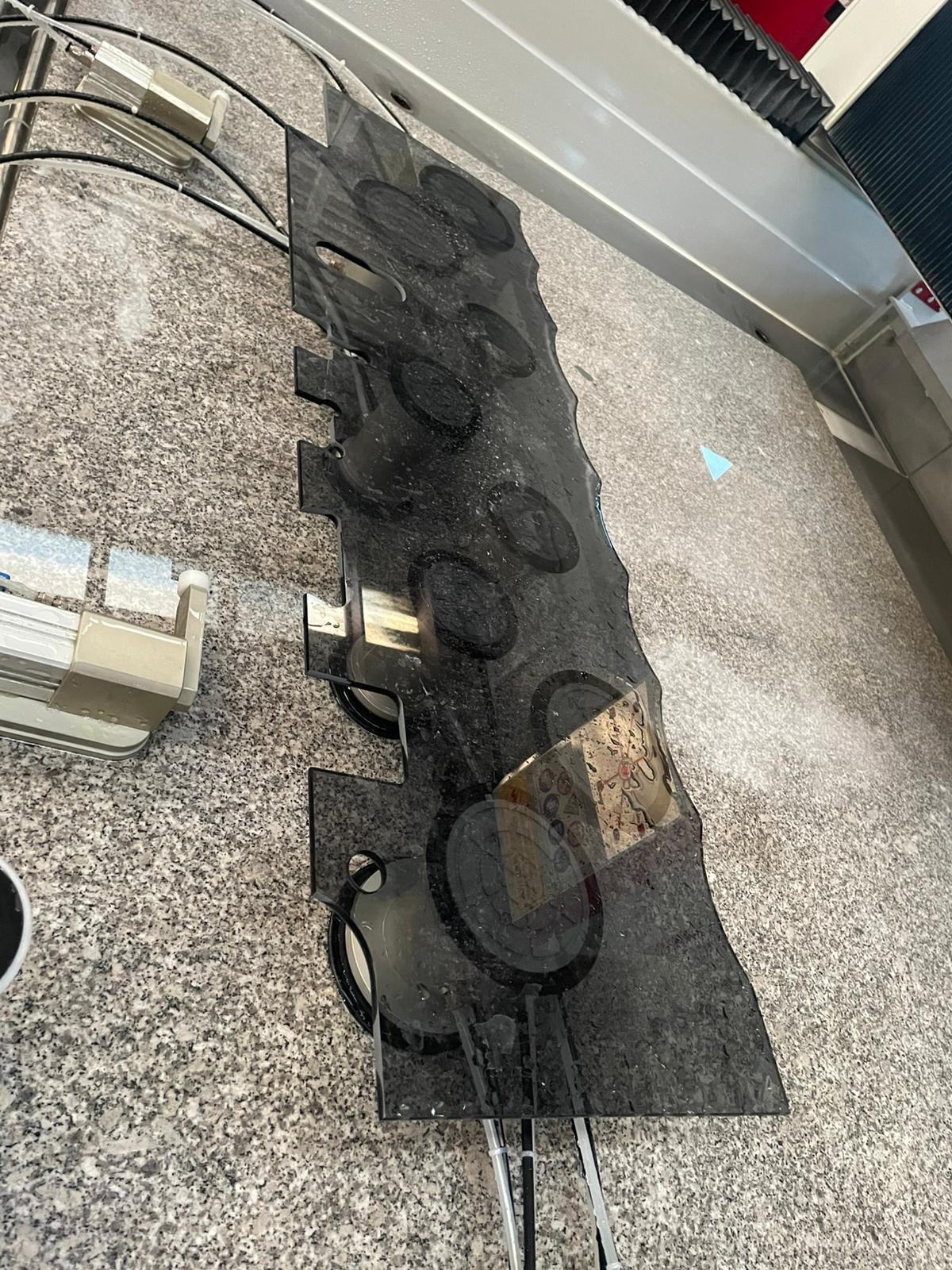

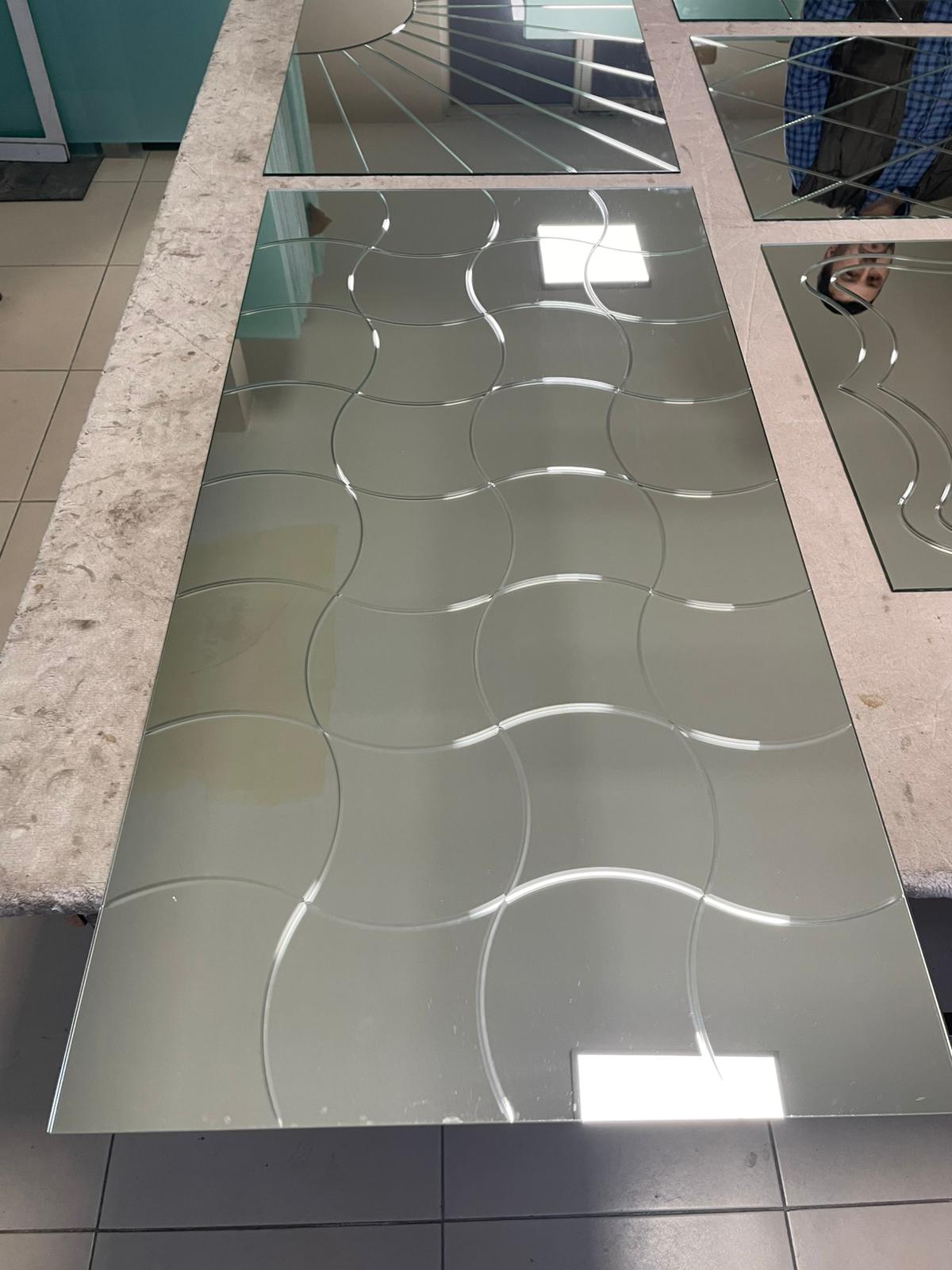

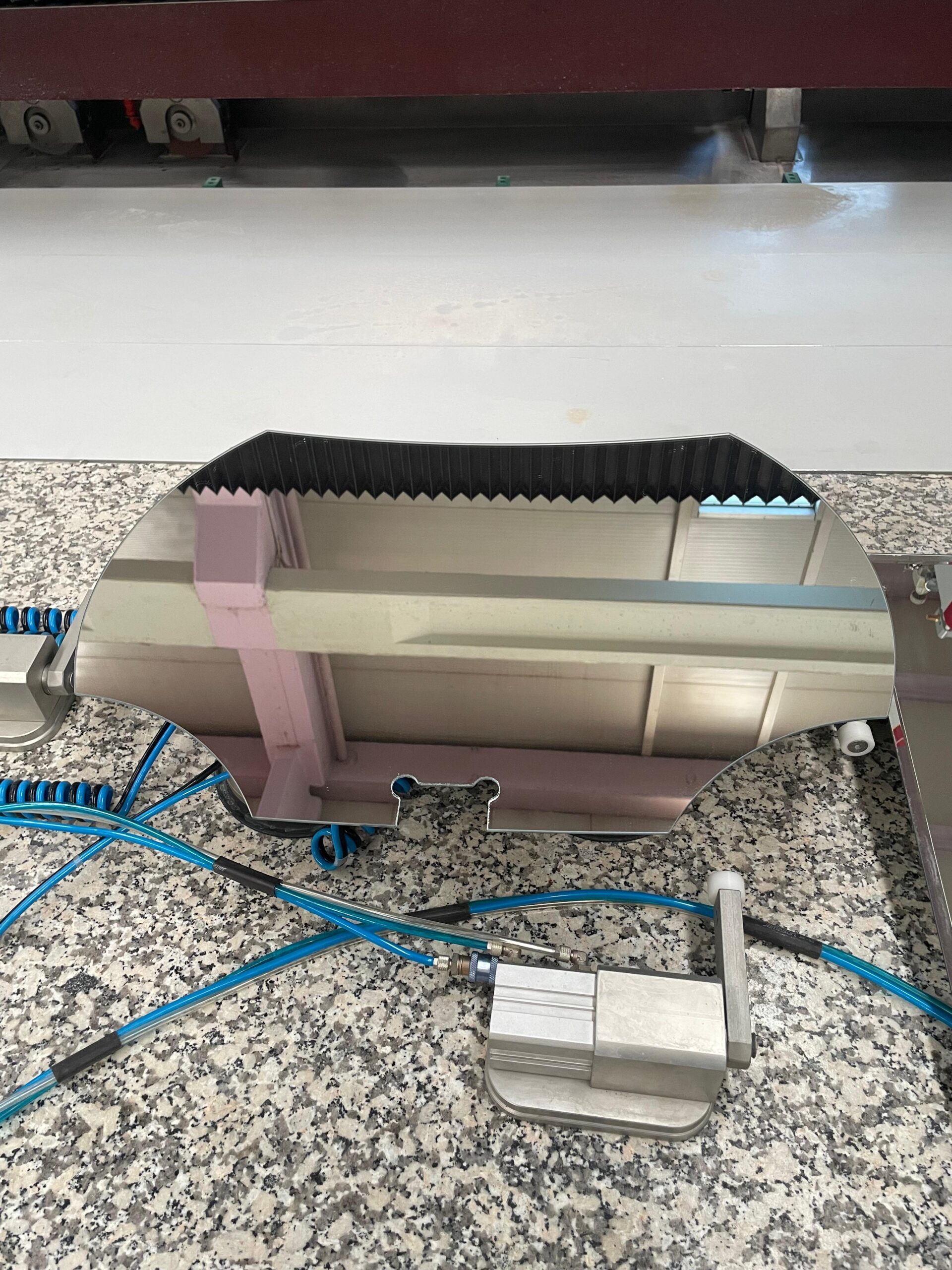

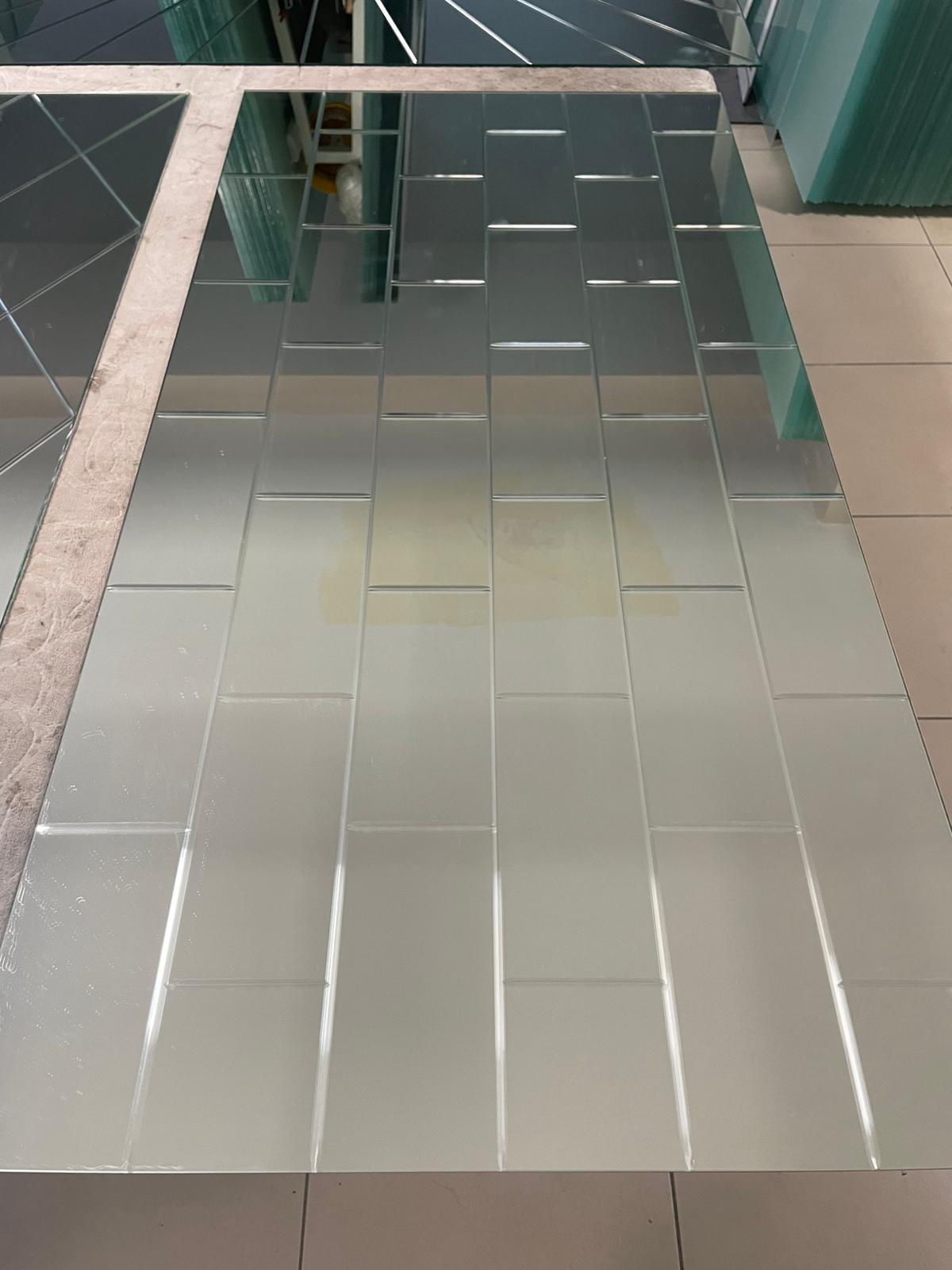

The 4-axis CNC glass processing machine combines grooving, edging, milling, drilling and shape processing in one machine. It is used in the production of kitchen worktop glass, automotive glass, shower cabin glass, glass railings, furniture glass and architectural patterned mirrors. It is also used for processing ceramic tiles.
With 25 kW installed power and a rigid body it is suited to heavy work; automatic tool changing switches between operations without waiting. It is Esen Makina’s most comprehensive glass processing solution.
×
❮
❯
![]()
